TW-V Self-propelled Thermoplastic Vibrating Road Marking Machine

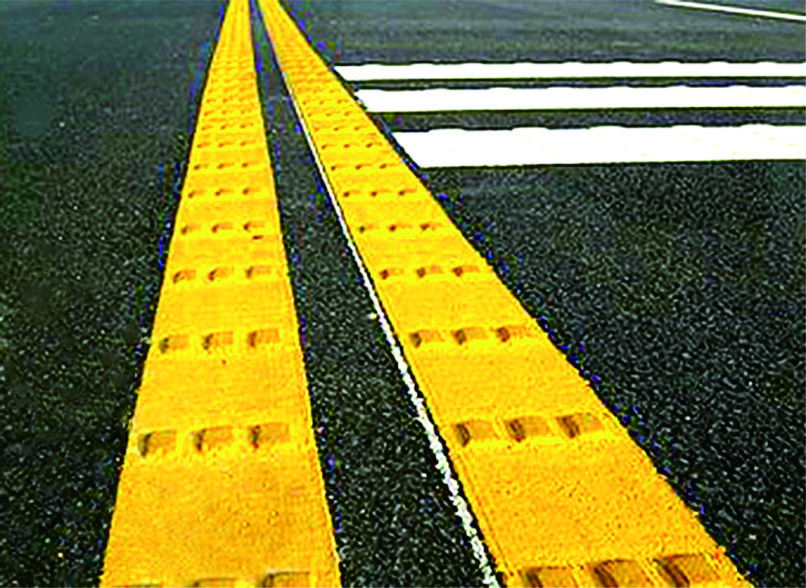

     Vibrating thermoplastic lines is common used in developed countries, whose baseline usually is 2-3mm and the bulge height is 3-7mm. When vehicles go through vibrating thermoplastic lines, the steering wheel would vibrate slightly and the friction between wheels and lines would make noise to force driving speed reduction or remind tired and distracted drivers to drive within vehicle lanes, thus enhances driving safety. On the other hand, vibrating thermoplastic lines make a better reflective effect on rainy nights than the normal thermoplastic lines and the normal temperature lines. According to fact statistics, the accident rate can decrease by 40% on the maintenance section after the vibrating lines are adopted.

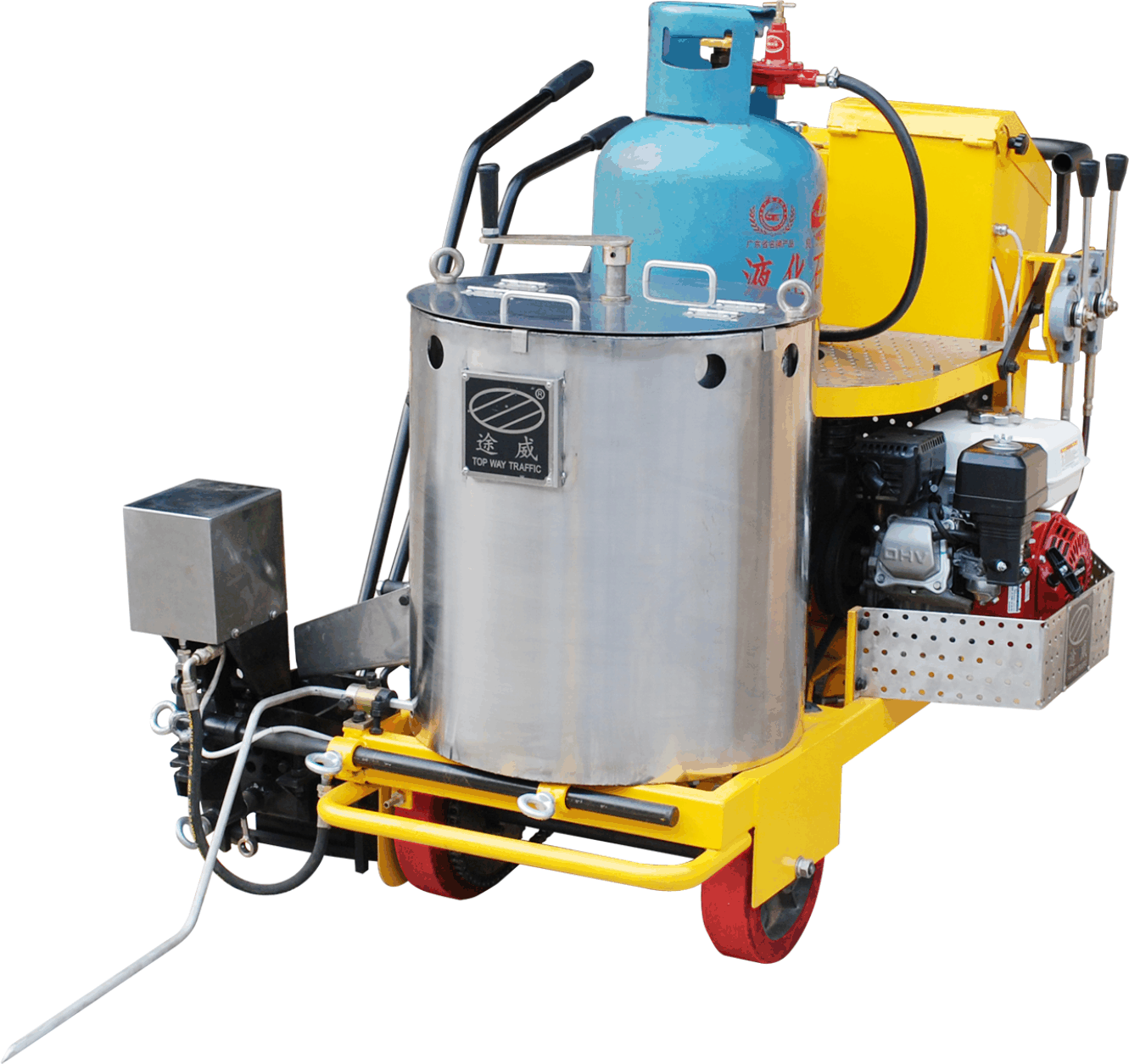

  TW-V Self-propelled Thermoplastic Vibrating Road Marking Machine, made up of a hydraulic system, a pneumatic system, a mechanical system, and a microcomputer system, can complete the construction of baselines and vibrating lines at one time and mark lines with different bulge length and bulge spacing by controlling the microcomputer.

Techinical parameter:

Outer dimensions                1400*1100*1100mm

Net weight                         240kg

Capacity of stirring tank      115kg

Engine power                     HONDA5.5HP gasoline engine

Working pressure                0.5MPA

Walking drive                      Hydraulic pressure

Walking speed                     0-5km/h

Gradient                              30%(about16.5°）

Bulge height                         1-10mm(depending on the quality of paint)

Bulge spacing                       1-999mm Error range 5mm

Bulge length                         1-999mm Error range 5mm

Bulge width                         150mm marking hopper: 3 ribs, 25mm each

                                           200mm marking hopper:4 ribs,25mm each

                                           300mm marking hopper； 4ribs, 30mm each

Specification:

*The hydraulic stepless transmission device can make the machine walk automatically, which is faster and more effective.

The hydraulic system, pneumatic system and microcomputer system we adopted are all well-known international brands, which make our vibrating marking machine has better function.

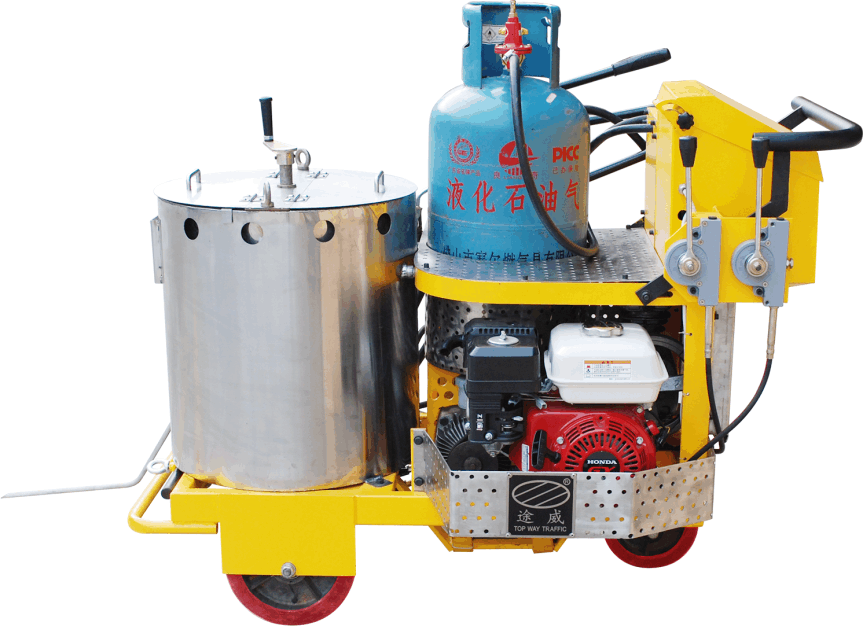

*For traditional self–propelled vibrating marking machines, the liquefied petroleum gas tank is too taller than operator that their sight is blocked. Our new model overcame this disadvantage by rearranging the hydraulic system, pneumatic system, mechanical system and the microcomputer system, which make the machine structure more reasonable and user-friendly. The most important thing is that the total weight of the machine is 50KG lighter.

The new designed vibrating marking hopper adopted several kinds of new materials and is more durable than ordinary hopper. The new arrangement of the pneumatic system and mechanical system on the vibrating hopper contribute to fewer breakdowns of the air cylinder and magnetic valve by keeping the air cylinder and magnetic valve far away from heating source.

*New designed microcomputer controller:

Bulge length and bulge spacing of the line can be marked by adjusting the control panel of the microcomputer.

Hardware: Using industrial control level configuration instead of civilian level configuration which can improve the stability of the microcomputer to a higher level.

Software: the new software program contributes to a better performance of the hardware. Besides, it possesses more reasonable settings. For example, when walking backwards, the active plate never move up and down. And the error limit is within 5mm if continue to mark lines base on the original line.

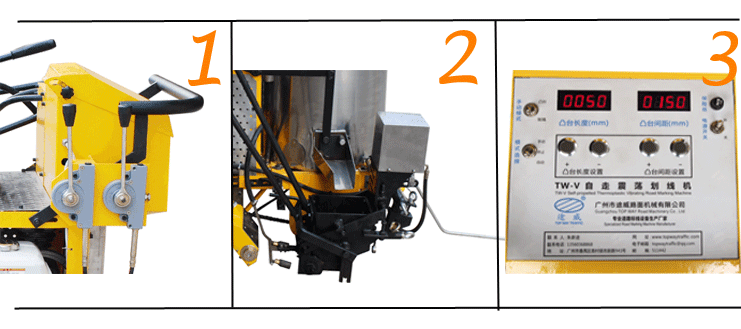

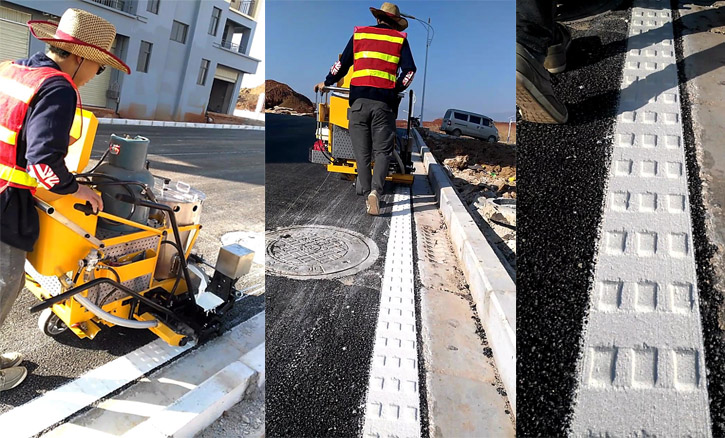

Working picture:
